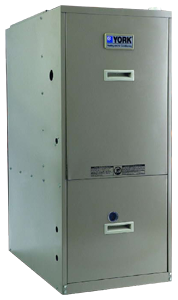

Latitude Series Gas Furnace

Model Number and Description
  • GY9S120D20UP11 Upflow Gas Furnace
  • Category IV Venting, Condensing
Standard Features
  • Compact and Easy To Install
  • Compact 40" Height
  • Blower-off Time Delay
  • Integrated Control Module
  • Hot Surface Ignition
  • Electronic Diagnostics and Fault Display
  • PSC Four Speed Direct Drive Motor
  • Tubular Steel Primary Heat Exchanger
  • 29-4C Stainless Steel Secondary Heat Exchanger
  • Sealed Combustion or Single Pipe Vent (using interior combustion air)
  • Solid Removable Bottom Panel
  • To Be Used Where Ambient Temperatures Are Above 32 ° F
Specifications
  • Heating Input MBTU/h: 120
  • Heating Output MBTU/h: 112
  • Efficiency AFUE: 92.0%
  • Nominal Airflow CFM: 1200
  • Maximum Outlet Air Temperature 170°F
  • Blower Motor HP: 1
  • Electrical Performance
    • Power Supply 115-1-60
    • Total Unit Amps: 14
    • Maximum Fuse Size Amps: 20
  • Shipped Natural Gas - Convertible to LP Gas With Optional Kit # 1NO0347
  • Dimensions:
    • Height Inches: 40
    • Width Inches: 24-1/2
    • Depth Inches: 28-1/2
  • Weight Pounds: 178
Warranty
  • Lifetime heat exchanger warranty for original purchaser
  • 10-year heat exchanger warranty for commercial applications
  • 5-year limited parts warranty
