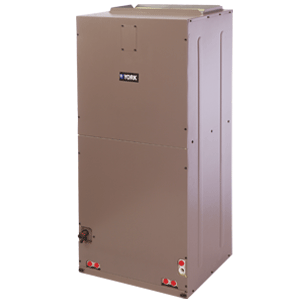

Latitude Air Handler

Model Number and Description
  • AHP30B3XH21 Air Handler
  • MicroBlueâ„¢ Coated Fins
    • A Hydrophilic Coating That Enhances Condensate Removal During the Refrigeration Cycle
    • Antimicrobial
  • 1" Cabinet Insulation
    • R-4.2
    • External Insulating Wrap Kit Available for Extreme Humidity Conditions
  • Sealed for 2% or Less Leakage Rate
  • Durable Pre-Painted G90 Galvanized Steel Finish
  • Heat Kits Available
  • Optional Thermal Expansion Valve
  • Specifications
    • CFM Range: 686 - 1,138
    • Motor HP: 1/2
    • Nominal RPM: 1,075
    • Face Area (Sq. Ft.): 3.89
    • Rows Deep: 3
    • Fins/Inch: 12
    • Sweat Refrigerant Connections
    • Refrigeration Connections Line Size
      • Liquid (Inches): 3/8
      • Vapor (Inches): 3/4
  • Electrical
    • Full Load (Amps) at 230V: 2.2
    • Maximum Overcurrent Protection: 15
  • Dimensions:
    • Height Inches: 46
    • Width Inches: 17.5
    • Depth Inches: 21.5
  • Shipping Weight Pounds: 136
  • Warranty
    • 5-year limited warranty.
